真空法兰用
| KS部品番号 |
ＪＩＳ 呼び番号 |

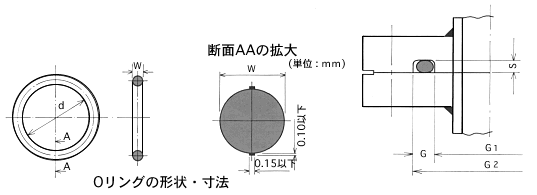

Ｏリングの寸法 |
フランジみぞ部ﾉ寸法 |
|||||||
| 太さＷ | 内径ｄ |
呼び径 |
G1 |
Ｇ2 |
Ｇ +0.1 0 |
S 0 -0.2 |
||||
| KSV0015 |
V15 |
4.0±0.1
|
14.5 | ±0.20 | 15 |
+1.0 0 |
25 |
5.0 |
3.0 | |
| KSV0024 |
V24 |
23.5 | ±0.24 | 10 | 24 | 34 | ||||
| KSV0034 |
V34 |
33.5 | ±0.33 | 20 | 34 | 44 | ||||
| KSV0040 |
V40 |
39.5 | ±0.37 | 25 | 40 | 50 | ||||
| KSV0055 |
V55 |
54.5 | ±0.49 | 40 | 55 | 65 | ||||
| KSV0070 |
V70 |
69.0 | ±0.61 | 50 | 70 | 80 | ||||
| KSV0085 |
V85 |
84.0 | ±0.72 | 65 | 85 | 95 | ||||
| KSV0100 |
V100 |
99.0 | ±0.83 | 80 | 100 | 110 | ||||
| KSV0120 |
V120 |
119.0 | ±0.97 | 100 | 120 |
1303.2 |
||||
| KSV0150 |
V150 |
148.0 | ±1.18 | 125 | 150 | 160 | ||||
| KSV0175 |
V175 |
173.0 | ±1.36 | 150 | 175 | 185 | ||||
| KSV0225 |
V225 |
6.0±0.15 | 222.5 | ±1.70 | 200 | 225 | 241 | 8.0 | 4.5 | |
| KSV0275 |
V275 |
272.0 | ±2.02 | 250 | 275 | 291 | ||||
| KSV0325 |
V325 |
321.5 | ±2.34 | 300 | 325 | 341 | ||||
| KSV0380 |
V380 |
376.0 | ±2.68 | 350 | 380 | 396 | ||||
| KSV0430 |
V430 |
425.5 | ±2.99 | 400 | 430 | 446 | ||||
| KSV0480 |
V480 |
10.3±0.3 |
475.0 | ±3.30 | 450 | 480 |
+1.5 0 |
504 |
12.0 |
7.0 |
| KSV0530 |
V530 |
524.5 | ±3.60 | 500 | 530 | 554 | ||||
| KSV0585 |
V585 |
579.0 | ±3.92 | 550 | 585 | 609 | ||||
| KSV0640 |
V640 |
633.5 |
±4.24 |
600 | 640 | 664 | ||||
| KSV0690 |
V690 |
683.0 | ±4.54 | 650 | 690 |
+2.0 0
|
714 |
|||
| KSV0740 |
V740 |
732.5 | ±4.83 | 700 | 740 | 764 | ||||
| KSV0790 |
V790 |
782.0 | ±5.12 | 750 | 790 | 814 | ||||
| KSV0845 |
V845 |
836.5 |
±5.44 |
800 | 845 | 869 | ||||
| KSV0950 |
V950 |
940.5 | ±6.06 | 900 | 950 | 974 | ||||
| KSV01055 |
V1055 |
1044.0 |
±6.67 |
1000 | 1055 | 1079 | ||||
