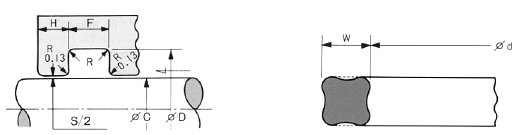

呼び番号

軸径

パッキン寸法

みぞ寸法

Ｈ

直径でのすきま　Ｓ

Ｃ

Ｗ

ｄ

Ｄ

Ｆ

Ｒ

KX7

7

+0

-0.015

2.1

±0.1

7.4

±0.15

(±0.3)

10.7

+0

-0.05

2.6

+0.13

-0

0.4

2以下

0.18以下

KX8

8

8.4

11.7

KX9

9

9.4

12.7

KX10

10

10.4

13.7

KX11

11

+0

-0.018

2.7

±0.1

(±0.2)

11.5

15.9

+0

-0.05

3.2

+0.13

-0

KX12

12

12.5

16.9

KX13

13

13.6

17.9

KX14

14

14.6

18.9

KX15

15

15.6

19.9

5以下

KX16

16

16.6

20.9

KX17

17

17.8

21.9

KX18

18

19.0

22.9

KX19

19

+0

-0.021

20.0

23.9

KX20

20

21.2

24.9

KX21

21

22.2

25.9

特に

制限

しない

KX22

22

23.2

26.9

KX24

24

4.3

±0.15

(±0.3)

25.2

31.9

+0

-0.05

5.1

+0.13

-0

0.8

0.22以下

KX25

25

26.2

32.9

KX26

26

27.2

33.9

KX28

28

29.2

35.9

KX30

30

31.2

37.9

KX32

32

+0

-0.025

33.2

39.9

KX35

35

36.3

42.9

KX38

38

39.3

45.9

KX40

40

41.4

±0.25

(±0.5)

47.9

KX42

42

43.5

49.9

KX45

45

46.5

52.9

KX48

48

49.6

55.9

KX50

50

51.7

57.9

KX55

55

+0

-0.030

5.7

±0.15

56.7

65.6

+0

-0.05

6.5

+0.13

-0

0.25以下

KX60

60

61.8

70.6

KX65

65

67.0

75.6

KX70

70

72.0

±0.4

80.6

KX75

75

77.5

85.6

KX80

80

82.4

90.6

KX85

85

+0

-0.030

86.5

95.6

KX90

90

92.7

100.6

KX100

100

103.0

110.6

KX110

110

113.3

120.6

KX120

120

122.4

130.6
